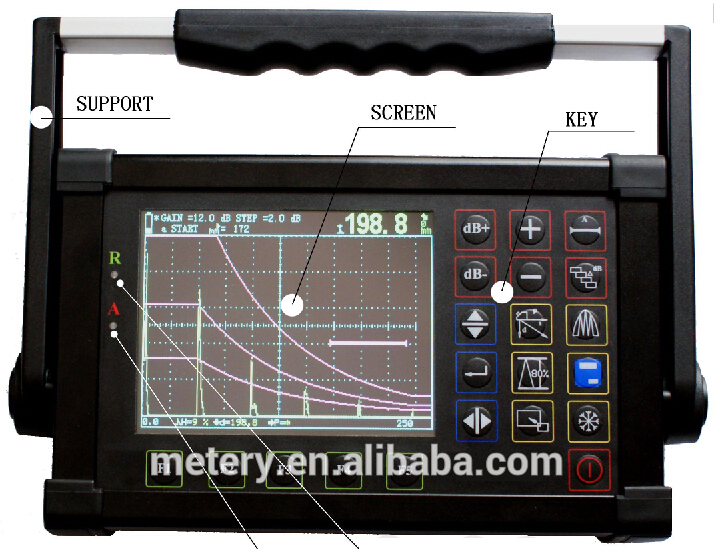

Digital Ultrasonic Flaw Detector Metal Ultrasonic Flaw Detector
Details
Introduction

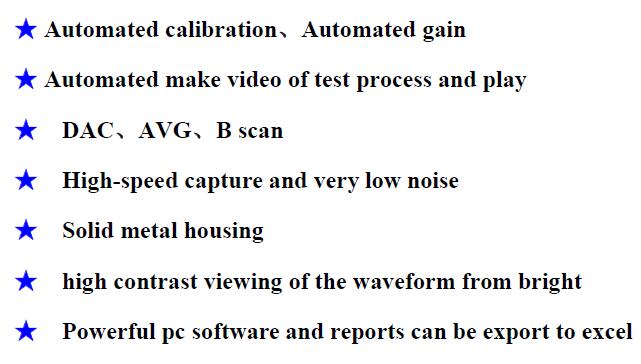

Features of Digital Ultrasonic Flaw Detector
Other assistant functions
1. Display freeze
2.Automated echo degree
3. Angles and K-value
4. Lock and unlock function of system parameters
5. Dormancy and screen savers
6. Electronic clock calendar
7. Two setting and alram indication
8. Gate and DAC alarm

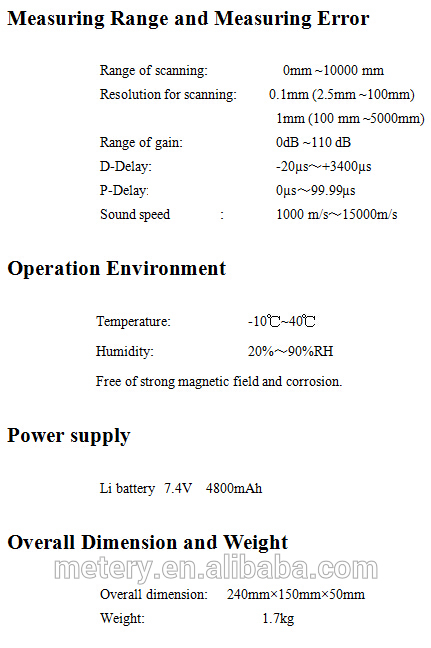

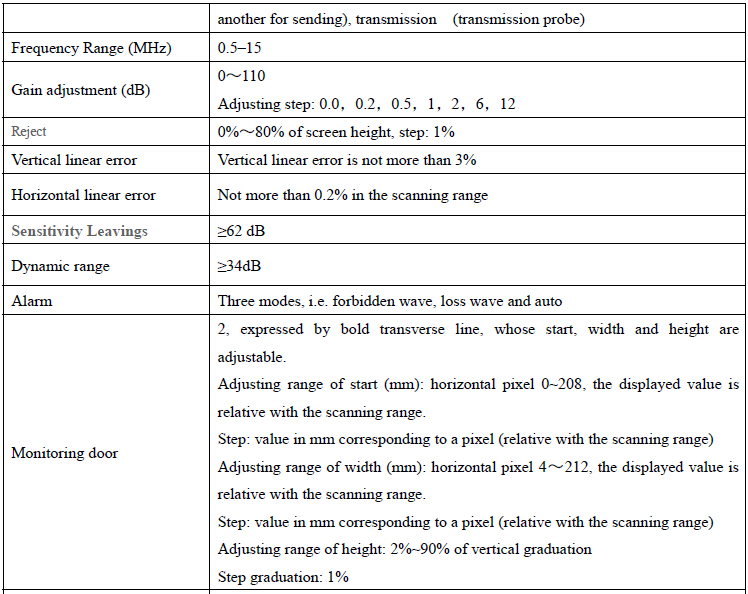

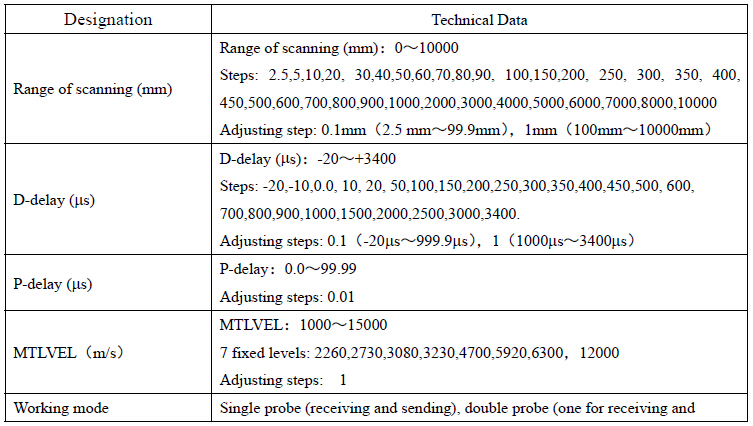

Technical Parameters of Digital Ultrasonic Flaw Detector
Other Symbol Instruction
| symbol | name | Description |
| | Freeze | Freeze state. |
| | Communication | The instruments is communicating with PC. |
| | Angular distance | distance from the incidence point to the reflecte point. |
| | Depth to reflector | depth from the incidence point to the reflecte point. |
| | Surface distance | surface distance from the incidence point to the reflecte point. |
| | Echo amplitude | The amplitude value of max echo within the gate. |
| | Edge sampling | It show that the instrument is in “Edge sampling”mode,depth and angular distance is the measure value of the first echo which is above the gate and within the gate. |
| | Peak sampling | It show that the instrument is in “Peak sampling”mode,depth and angular distance is the measure value of the echo with the max amplitude within the gate. |
| | Memory peaks | peaks memory function is enabled. |
| | Making video | Dynamic Record function is enabled. |
| | Operation error | Operation error last time. |
| | Radian revise | Abscissa and measure result is revised according to radian. |

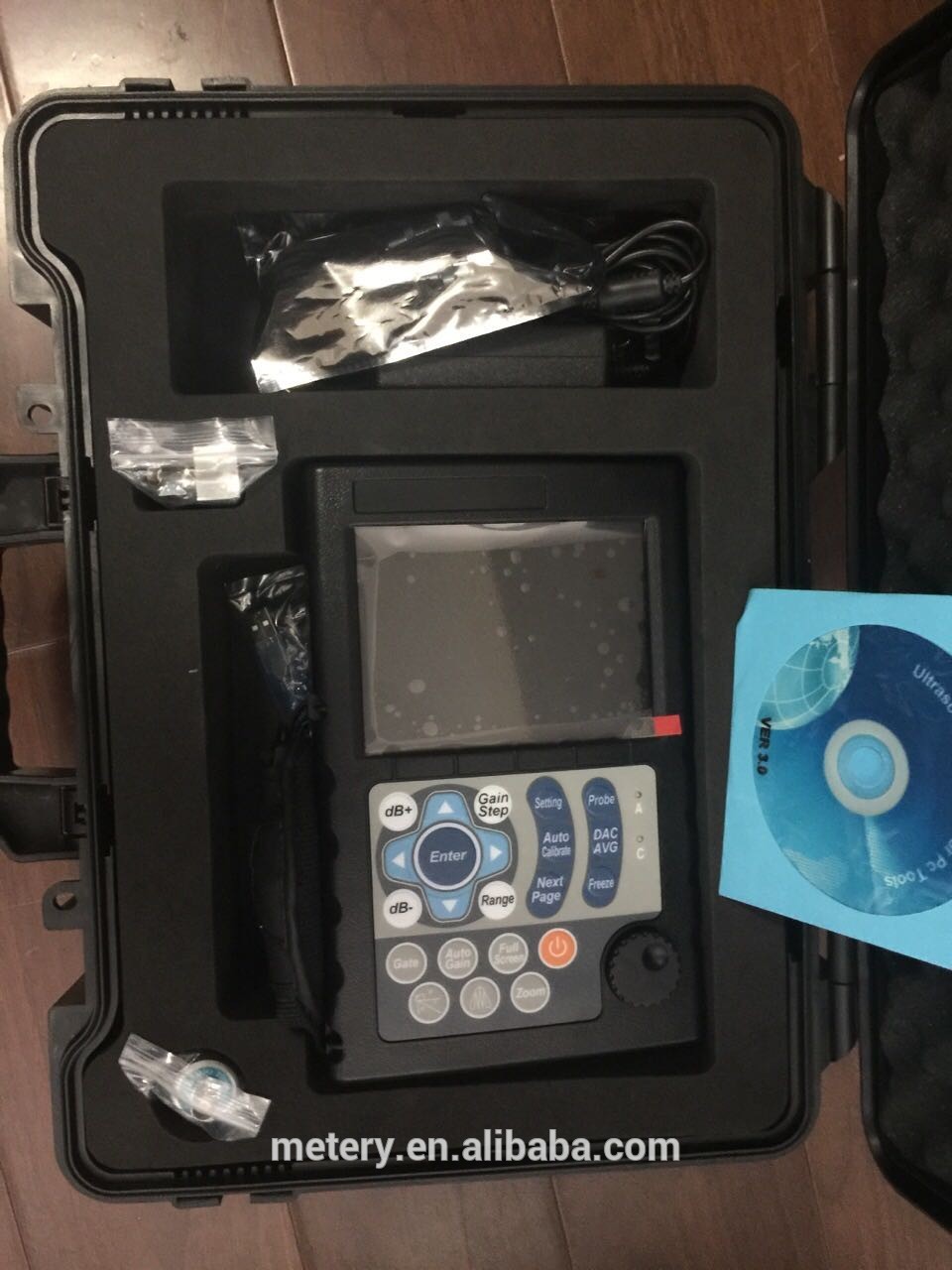

Packing For Shipment
Surprise price CNF price 1380USD/PC
Transaction History
http://metery.en.alibaba.com/company_profile/transaction_history.html
Contacts
Mr. Stephen Sun (Sales & Co-founder)
Email: info@metery-tech.com, sales@meterytech.com
----------------------------------------------------------------------------------------------------------
Cellphone: +86 18841127006
Skpye: meterytech
LINE: meterytech
Whatsapp / Viber: +86 18841127006
Wechat: Kai123263788
QQ: 123263788
Metery Technology Inc
----------------------------------------------------------------------------------------
www.meterytech.com
Payment: T/T, Western Union, Paypal
|
|

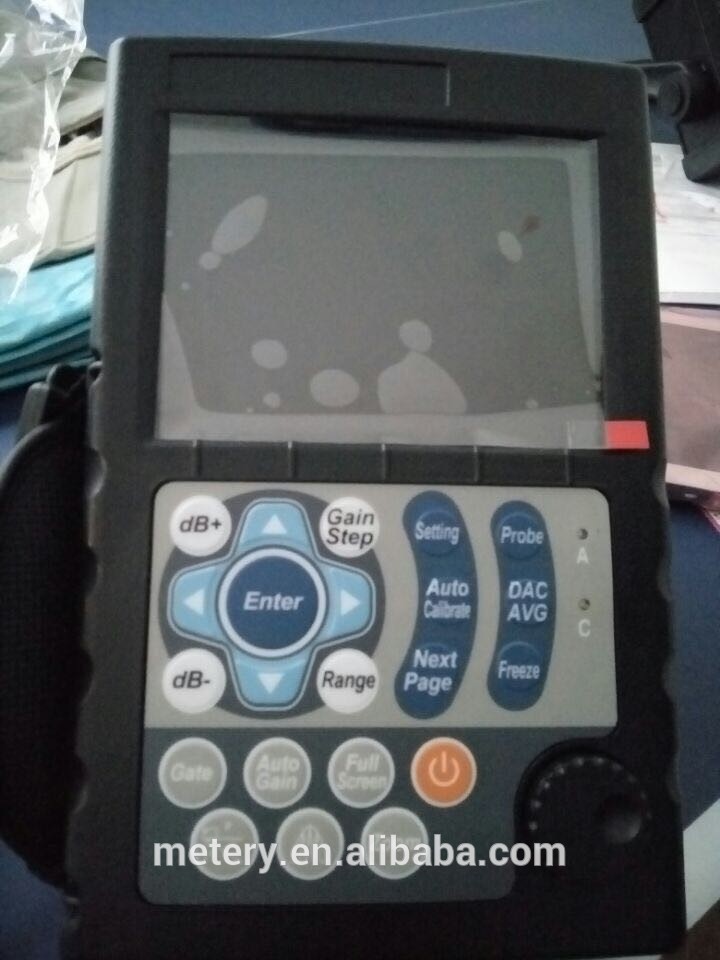

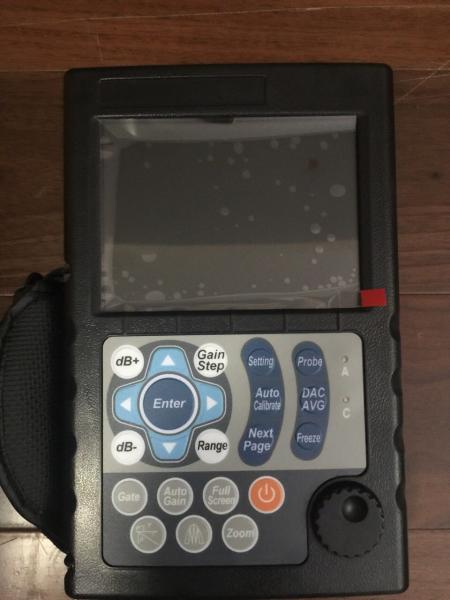

Metal Flaw Detector Images
|
